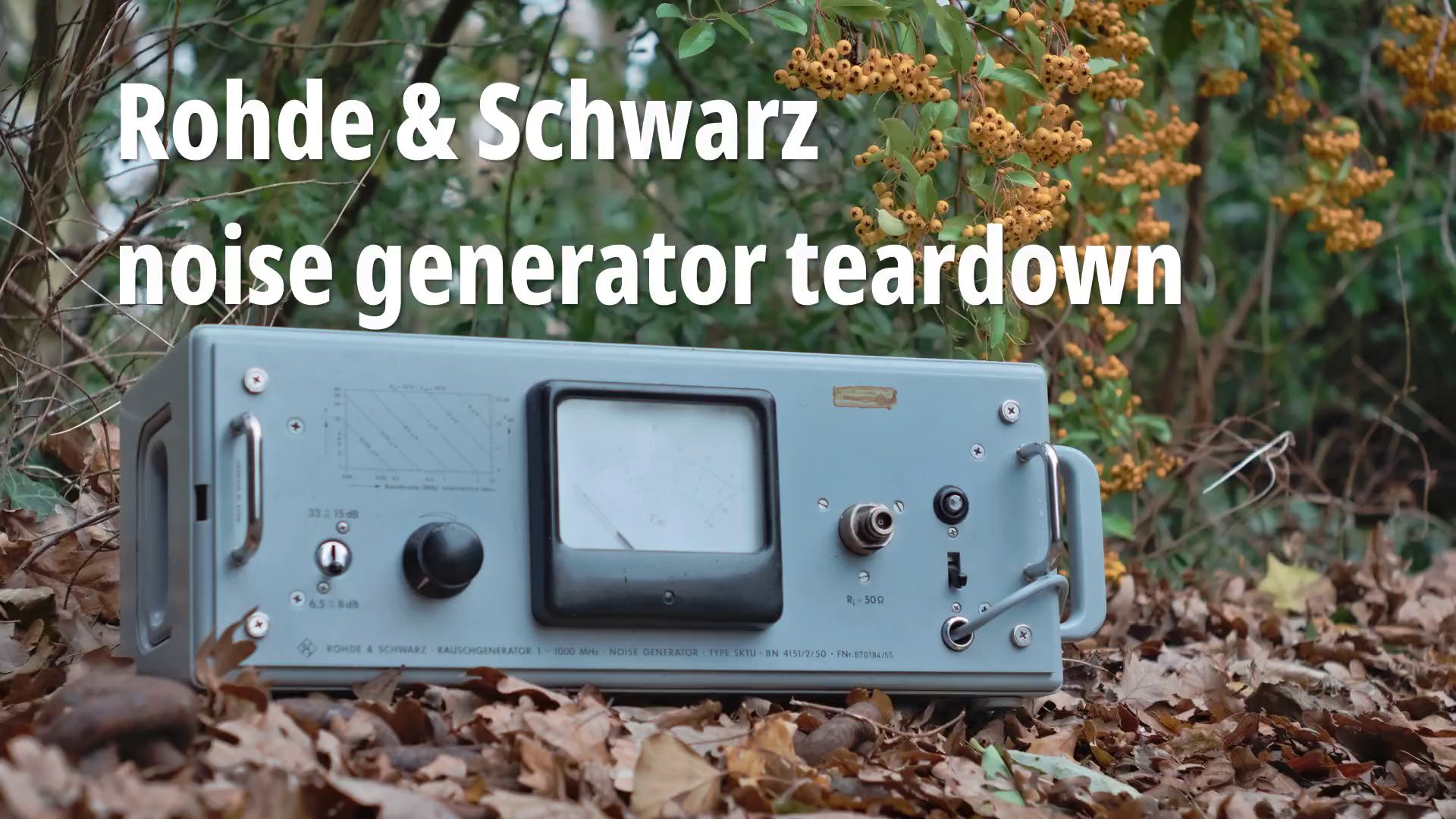

Power up and tear down of a Rohde & Schwarz SKTU BN 4151/2/5 noise generator

This noise generator from 1958 has been sitting on a shelf for year, even decades. If I should power it up suddenly, it would probably die. In this video, I explain how to slowly power up an old device to prevent it from releasing the magic smoke. At the same time I study the design choices the engineers from the past made in order to build a device with a bandwidth of 1 GHz.

2024-12-30

Video

• English video on PeerTube
• English video on Odysee
• English video on Internet Archive
• English video Torrent file
• Dutch video on PeerTube
• Dutch video on Odysee
• Dutch video on Internet Archive
• Dutch video Torrent file

Documentation

• Manual Rohde & Schwarz SKTU BN 4151/2/5 noise generator (pdf)
• Schematic Rohde & Schwarz SKTU BN 4151/2/5 noise generator (png)
• Datasheet Sylvania 5722 noise tube (pdf)
